Easy and safe. When the autoclave lid is closed, the lid is automatically locked by a circumferential ring system. A special lip seal made of heat resistant silicone provides reliable sealing. As steam pressure builds within the sterilizer, the seal becomes tighter.
The lid also opens easily – either at the push of a button or automatically at the end of a sterilization cycle.
The door-locking system on this vertical autoclave, is temperature dependent and adheres to national and international safety standards. The door remains locked as long as there is excess pressure in the chamber. The lid, like other parts of the pressure vessel and housing, is made of stainless steel. The modern design faceplate, which also contains the control panel, display and part of the control technology, is made of heat resistant and insulated plastic. There is no risk of the autoclave operator coming into contact with hot components.
A steam generator is incorporated in the sterilizer housing providing substantial benefits:
The Systec V-Series vertical autoclave units are the first of its kind to be designed for higher pressures and temperatures. The standard pressure sterilizer chamber is designed for 5 bar/150 °C. If the expanded pressure and temperature model is selected as an option, all control and safety components are adapted to the higher temperature and pressure. This option may be retrofitted to existing V-series floor standing autoclave units.
Systec vertical autoclaves are equipped direct from the factory for sterilization temperatures up to 140 °C and 4 bar of pressure.
The pressure vessel is made of corrosion-resistant electro-polished stainless steel 1.4571 (V4A) AISI 316 Ti and therefore very easy to clean. The vertical autoclave framework and housing are also made of stainless steel. The highly efficient, high-quality Hanno-Tect insulation material releases no particles and therefore the Systec V-Series sterilizer is ideal for use in clean room environments
Exhaust steam is condensed automatically via a PT 100-regulated cooling system. This prevents odors and protects waste water piping.
The Systec floor standing autoclave units have “comprehensive intelligence”: Pressure is controlled via an electronic pressure transducer. Additionally, there is a flexible temperature sensor in the sterilization chamber or in a reference vessel (for liquids) and another sensor at the coldest part of the chamber, the condensate outlet. The microprocessor, specially developed for our laboratory autoclave, controls all relevant functions such as steam pressure, temperature and sterilization time as well as optional rapid cooling, pre / post-vacuum and drying.

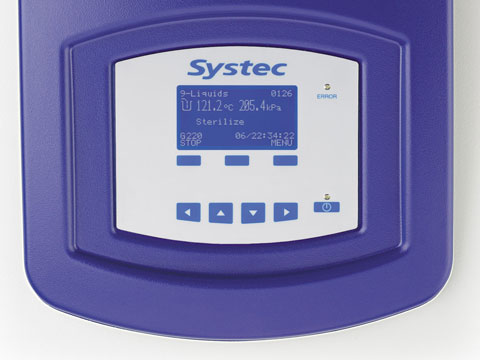

Menu-presented instructions in easy to read text form. Membrane keyboard with acoustic confirmation signal. Ergonomically located in a logical and easy to operate position.
