The Whitley Workstation A85 has a 540 plate capacity and is constructed of rigid acrylic (6mm thick front panels, 10mm thick side panels). The panels are chloroform annealed, creating a uni-body construction capable of withstanding positive pressure well in excess of the 4 PSI maintained constantly by the system.
Patented use of “oval” shaped gloveless entry ports allow the introduction of samples/materials by acting as a transfer airlock. This process allows the user to place their materials in the chamber while placing their hands in the chamber, reducing overall gas consumption considerably by not having to run a secondary airlock cycle. Evacuation and gassing of sleeves as well as opening of inner doors are controlled via the wireless footswitch. The system uses a radio controlled footswitch to eliminate clumsy wiring. There is a manual override for use when necessary.
Patented use of Anotox (activated carbon impregnated with ferric hydroxide) for atmospheric conditioning. By using Anotox, the catalyst does not have to be removed and baked routinely. Anotox removes the Hydrogen Sulfide and volatile fatty acids (by-products of anaerobe metabolism) that poison the catalyst and can impede the growth of anaerobes.
The entire workstation is temperature controlled, allowing for temperatures between 4°C and 44°C. There is no need for extra incubators and loss of space efficiency. Humidity is controlled automatically by an electronically controlled water removal system. Water is pumped to a container containing a silver-impregnated bacteriostatic wick to evaporate the water externally. There are no containers to empty. The humidity setting is user programmable.
The electronics and lighting are located in an external control housing. There is no need to compromise the workstation to change light bulbs or perform fuse replacement.
The 100 plate airlock is an option to the Whitley Workstation A85. The airlock cycle is electronically controlled and requires only a press of a button to operate. Catalyst dedicated to the airlock is housed internally and does not need to be changed or replaced.
Options:Features:
Large 30 litre airlock with powered internal door provides effective sample and equipment transfer in the fastest possible time whilst ensuring the minimum amount of oxygen is introduced into the chamber.
Manual, oval glove ports enable you to work gloved or bare handed. Each gloveport also acts as a mini-airlock so you can transfer up to 10 plates through each as you insert your arms.
Color, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status. Features password protected user levels
Optional refrigeration unit available should you need to store samples prior to incubation.
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket available, 2 Amp max
Customized trolley hardware available, makes moving the workstation easy and fast.
Accommodates over 540 plates with ample work space, two porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Capacity (Liters) | 122 |
Capacity (Petri Dishes) | 540 - 610 |
Port/Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Size | 30 liters |
Refrigeration | Option Available |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Not Available |
Dimensions (w/d/h - mm) | 1570 x 840 x 760 |
Weight (lbs/kg) | 330 / 150 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Trolley | Recommended |
The Whitley Workstation A95 has a 1080 plate capacity and is constructed of rigid acrylic (6mm thick front panels, 10mm thick side panels). The panels are chloroform annealed, creating a uni-body construction capable of withstanding positive pressure well in excess of the 4 PSI maintained constantly by the system.
Patented use of “oval” shaped gloveless entry ports allow the introduction of samples/materials by acting as a transfer airlock. This process allows the user to place their materials in the chamber while placing their hands in the chamber, reducing overall gas consumption considerably by not having to run a secondary airlock cycle.
Patented use of Anotox (activated carbon impregnated with ferric hydroxide) for atmospheric conditioning. By using Anotox, the catalyst does not have to be removed and baked routinely. Anotox removes the Hydrogen Sulfide and volatile fatty acids (by-products of anaerobe metabolism) that poison the catalyst and can impede the growth of anaerobes.
The entire workstation is temperature controlled, allowing for temperatures between 4°C and 44°C. There is no need for extra incubators and loss of space efficiency. Humidity is controlled automatically by an electronically controlled water removal system. Water is pumped to a container containing a silver-impregnated bacteriostatic wick to evaporate the water externally. There are no containers to empty. The humidity setting is user programmable. The electronics and lighting are located in an external control housing. There is no need to compromise the workstation to change light bulbs or perform fuse replacement.
The 100 plate airlock is an option to either the Whitley Workstation A95. The airlock cycle is electronically controlled and requires only a press of a button to operate. Catalyst dedicated to the airlock is housed internally and does not need to be changed or replaced. The system uses a radio controlled footswitch to eliminate clumsy wiring. There is a manual override for use when necessary. There are audible alarms to notify the user of low gas pressure, gas leaks, or power failure. The system is capable of maintaining anaerobiosis in the event of power loss for up to 24 hours.
Options:Features:
Four manual, oval glove ports enable you to work gloved or bare handed. Each gloveport also acts as a mini-airlock so you can transfer up to 10 plates through each as you insert your arms.
Massive 1000 - 1400 Petri dish capacity with ample work space
Large 30 liter airlock with powered internal door provides effective sample and equipment transfer in the fastest possible time whilst ensuring the minimum amount of oxygen is introduced into the chamber.
Color, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status. Features password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket available, 2 Amp max
Customized trolley hardware available, makes moving the workstation easy and fast.
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Capacity (Liters) | 652 |
Capacity (Petri Dishes) | 1000 - 1400 |
Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Size | 30 liters |
Refrigeration | Not available |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Not Available |
Dimensions (w/d/h - mm) | 2415 x 840 x 760 |
Weight (lbs/kg) | 507 / 230 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Trolley | Option Recommended |
Porthole System | Manual Oval Ports |
Microbiology International can now offer the unique Whitley Internal HEPA Filtration System to provide a high degree of product/sample protection on Whitley Anaerobic Workstations. HEPA fitted workstations are ideal for use as part of a pharmaceutical manufacturing process, for the cultivation of slow-growing anaerobes, or for applications requiring complex manipulations under anaerobic conditions (ie biochemical assays).
Using innovative circulation technology, all the atmosphere in the chamber passes through the filter every four seconds, quickly creating and maintaining a particle-free environment (tested down to 0.3μm – exceeding ISO 14644 Class 3, as referenced in the Cell Tissue Culture Directive, or Class 1 of US Federal Standard 209E). Unlike some other systems, Microbiology International integrates the filter within the workstation.
To introduce samples or equipment, the built-in, 12 liter, rapid-cycle airlock has the capacity to introduce up to 40 Petri dishes into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox, ideal for quickly transferring all sizes of dishes and small items.
Whatever your application, we can tailor the Whitley A35 Workstation to your requirements. For example, if you want to be able to use electrical equipment inside the chamber, you could include the option of a built-in, interior electrical socket. If you require the ability to thoroughly sanitize your workstation between experiments or need to introduce large items of equipment, you may want to specify the removable front option.
From a relatively small footprint we have been able to maximize incubation capacity to create the perfect environment, whether for a few plates or hundreds of plates.
The Whitley A35 Anaerobic Workstation is the latest innovation in workstation technology from Don Whitley Scientific. Complete with a built-in, rapid airlock and intuitive touch-screen control panel, this new workstation allows you to work completely glove and sleeve-free.
Options:Features:
Rather than use ‘off-the-shelf’ filters, the Whitley HEPA Filtration System uses filters designed specifically for the product in conjunction with one of the world’s leading filter manufacturers.
Fitted with patented oval ports, equipped with sleeves and cuffs, which provide greater freedom of movement and operator comfort.
Automated humidity control with no user maintenance
Rapid, built-in airlock with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket available, 2 Amp max
Customized trolley hardware available, makes moving the workstation easy and fast.
Accommodates up to 600 plates with ample work space, three porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Available removable front that can be removed and replaced in 30 seconds without the use of tools. This allows for thorough cleaning or installation of larger equipment
The Whitley A35 is available with custom port options. The two ports can be either rapid entry or conventional sleeved ports by choosing the removable front option.
Capacity (Liters) | 300 |
Capacity (Petri Dishes) | 400 - 600 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 12 liters |
Refrigeration | Not available |
HEPA Filtration | Fitted as standard |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1255 x 720 x 710 |
Weight (lbs/kg) | 220 / 100 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Porthole System | Manual Sleeved Ports |
The A35 is the first workstation to be offered with our new glove/sleeveless system. Sample manipulation within a secure anaerobic environment is now as easy as working aerobically on the laboratory bench. The working and storage areas of the chamber are temperature controlled with an impressively low gradient throughout. This allows the full internal volume to be used as an incubator if desired.
Another major advantage of the sleeveless system is that it uses eight times less gas when entering the workstation compared with a conventional porthole system. The airlock is flushed with nitrogen as an additional cost-saving.
To introduce samples or equipment, the built-in, 12 liter, rapid-cycle airlock has the capacity to introduce up to 40 Petri dishes into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox, ideal for quickly transferring all sizes of dishes and small items.
Whatever your application, we can tailor the Whitley A35 Workstation to your requirements. For example, if you want to be able to use electrical equipment inside the chamber, you could include the option of a built-in, interior electrical socket. If you require the ability to thoroughly sanitize your workstation between experiments or need to introduce large items of equipment, you may want to specify the removable front option.
From a relatively small footprint we have been able to maximize incubation capacity to create the perfect environment, whether for a few plates or hundreds of plates.
Options:Features:
No gloves, no sleeves - complete bare-handed working
Automated humidity control with no user maintenance
Rapid, built-in airlock with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket, 2 Amp max
Accommodates up to 600 plates with ample work space, three porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Available removable front that can be removed and replaced in 30 seconds without the use of tools. This allows for thorough cleaning or installation of larger equipment
The Whitley A35 is available with custom port options. The two ports can be either rapid entry or conventional sleeved ports by choosing the removable front option.
Capacity (Liters) | 300 |
Capacity (Petri Dishes) | 400 - 600 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 12 liters |
Refrigeration | Not available |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1255 x 720 x 710 |
Weight (lbs/kg) | 220 / 100 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Porthole System | Manual or Instant Access Ports |

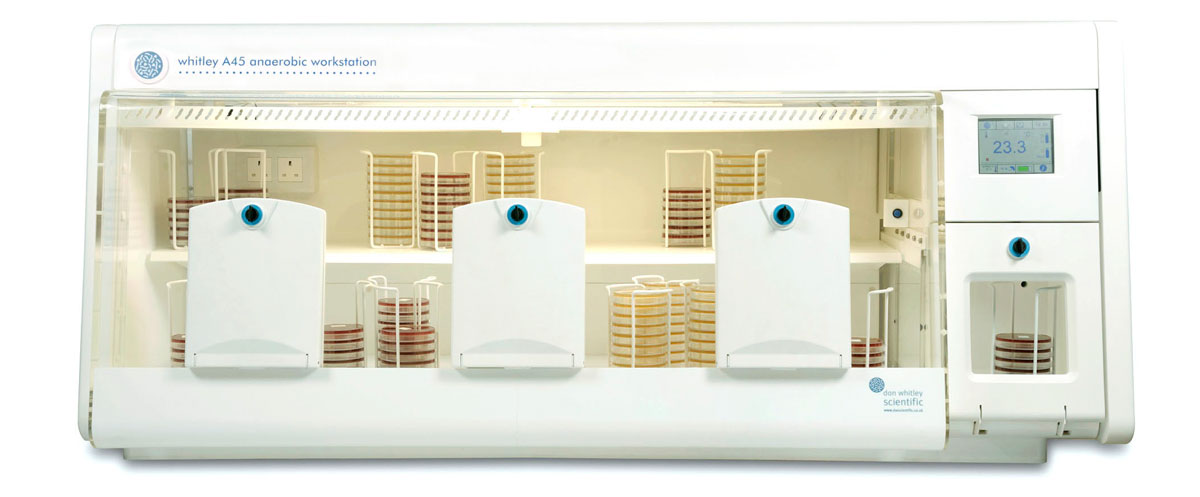

The A45 is the first workstation to be offered with our new glove/sleeveless system with three porthole doors. Sample manipulation within a secure anaerobic environment is now as easy as working aerobically on the laboratory bench. The working and storage areas of the chamber are temperature controlled with an impressively low gradient throughout. This allows the full internal volume to be used as an incubator if desired.
Another major advantage of the sleeveless system is that it uses eight times less gas when entering the workstation compared with a conventional porthole system. The airlock is flushed with nitrogen as an additional cost-saving.
To introduce samples or equipment, the built-in, 12 liter, rapid-cycle airlock has the capacity to introduce up to 40 Petri dishes into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox, ideal for quickly transferring all sizes of dishes and small items.
Whatever your application, we can tailor the Whitley A45 Workstation to your requirements. For example, if you want to be able to use electrical equipment inside the chamber, you could include the option of a built-in, interior electrical socket. If you require the ability to thoroughly sanitize your workstation between experiments or need to introduce large items of equipment, you may want to specify the removable front option.
From a relatively small footprint we have been able to maximize incubation capacity to create the perfect environment, whether for a few plates or hundreds of plates.
Options:Features:
No gloves, no sleeves - complete bare-handed working
Automated humidity control with no user maintenance
Rapid, built-in airlock with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket, 2 Amp max
Accommodates over 750 plates with ample work space, three porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Available removable front that can be removed and replaced in 30 seconds without the use of tools. This allows for thorough cleaning or installation of larger equipment
The Whitley A45 is available with custom port options. Two of the ports can be either rapid entry or conventional sleeved ports by choosing the removable front option.
Capacity (Liters) | 439 |
Capacity (Petri Dishes) | 600 - 900 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 12 liters |
Refrigeration | Not available |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1660 x 720 x 710 |
Weight (lbs/kg) | 286 / 130 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Porthole System | Manual or Instant Access Ports |
The Whitley A55 Anaerobic Workstation is the latest innovation in workstation technology from Don Whitley Scientific. Complete with two built-in, rapid airlocks and intuitive touch-screen control panel, this new workstation allows you to work completely glove AND sleeve-free.
No gloves, no sleeves, no waiting. The A55 is the first four port workstation to be offered with our new glove/sleeve-free entry system. This porthole design is ideal for users who are in and out of the chamber for short periods of time and use the workstation mainly as an anaerobic incubator. We recommend our conventional, sleeve-gassing ports for users who will be spending extended periods of time working inside the chambers. Now you can choose the entry system best suited for your workflow. The A55 offers any combination of sleeved or rapid-entry ports.
The work and storage areas of the atmosphere chamber are temperature controlled with an impressively low gradient threshold. This allows the full internal volume to be used as an incubator if desired. The A55 anaerobic chamber also offers the option of split incubation temperatures with separation between the two sides. The dual airlocks are flushed with nitrogen as an additional cost savings.
From a relatively small footprint we have been able to maximize incubating capacity to create the perfect environment, whether for a few plates or hundreds of plates. To introduce samples or equipment, the built-in, dual 12 liter rapid-cycle airlocks have the capacity to move up to 40 Petri dishes per airlock into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox for rapid sample entry. As with our other Whitley Workstations, the A55 anaerobic cabinet also incorporates patented use of Anotox (activated carbon impregnated with ferric hydroxide) for atmospheric conditioning. By using Anotox, the catalyst does not have to be removed and regenerated routinely. Anotox removes the hydrogen sulfide and volatile fatty acids (by-products of anaerobe metabolism) that poison the catalyst and impede the growth of anaerobes.
Options:Features:
No gloves, no sleeves - complete bare-handed working
Automated humidity control with no user maintenance
Two rapid, built-in airlocks with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket, 2 Amp max
1,000 - 1,400 plate capacity with ample work space, four porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
The Whitley A55 is available with custom port options. All four ports can be rapid entry, conventional sleeved ports or users can choose a combination of rapid entry ports and conventional sleeved ports.
Removable Front for thorough cleaning and sanitizing; enables users to introduce or remove equipment or bulk quantities of samples quickly
Capacity (Liters) | 652 |
Capacity (Petri Dishes) | 1000 - 1400 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 2 x 12 liters |
Refrigeration | Not available |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Fitted as standard |
Dimensions (w/d/h - mm) | 2150 x 720 x 710 |
Weight (lbs/kg) | 463 / 210 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Temperature Zones | 2 |
Simultaneous Users | 2 |
The Whitley A55 Anaerobic Workstation is the latest innovation in workstation technology from Don Whitley Scientific. Complete with two built-in, rapid airlocks and intuitive touch-screen control panel, this new workstation allows you to work completely glove AND sleeve-free.
No gloves, no sleeves, no waiting. The A55 is the first four port workstation to be offered with our new glove/sleeve-free entry system. This porthole design is ideal for users who are in and out of the chamber for short periods of time and use the workstation mainly as an anaerobic incubator. We recommend our conventional, sleeve-gassing ports for users who will be spending extended periods of time working inside the chambers. Now you can choose the entry system best suited for your workflow. The A55 offers any combination of sleeved or rapid-entry ports.
The work and storage areas of the atmosphere chamber are temperature controlled with an impressively low gradient threshold. This allows the full internal volume to be used as an incubator if desired. The A55 anaerobic chamber also offers the option of split incubation temperatures with separation between the two sides. The dual airlocks are flushed with nitrogen as an additional cost savings.
From a relatively small footprint we have been able to maximize incubating capacity to create the perfect environment, whether for a few plates or hundreds of plates. To introduce samples or equipment, the built-in, dual 12 liter rapid-cycle airlocks have the capacity to move up to 40 Petri dishes per airlock into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox for rapid sample entry. As with our other Whitley Workstations, the A55 anaerobic cabinet also incorporates patented use of Anotox (activated carbon impregnated with ferric hydroxide) for atmospheric conditioning. By using Anotox, the catalyst does not have to be removed and regenerated routinely. Anotox removes the hydrogen sulfide and volatile fatty acids (by-products of anaerobe metabolism) that poison the catalyst and impede the growth of anaerobes.
Options:Features:
No gloves, no sleeves - complete bare-handed working
Automated humidity control with no user maintenance
Two rapid, built-in airlocks with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket, 2 Amp max
1,000 - 1,400 plate capacity with ample work space, four porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
The Whitley A55 is available with custom port options. All four ports can be rapid entry, conventional sleeved ports or users can choose a combination of rapid entry ports and conventional sleeved ports.
Removable Front for thorough cleaning and sanitizing; enables users to introduce or remove equipment or bulk quantities of samples quickly
Capacity (Liters) | 652 |
Capacity (Petri Dishes) | 1000 - 1400 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 2 x 12 liters |
Refrigeration | Not available |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Fitted as standard |
Dimensions (w/d/h - mm) | 2150 x 720 x 710 |
Weight (lbs/kg) | 463 / 210 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Temperature Zones | 2 |
Simultaneous Users | 2 |
The A45 is the first workstation to be offered with our new glove/sleeveless system with three porthole doors. Sample manipulation within a secure anaerobic environment is now as easy as working aerobically on the laboratory bench. The working and storage areas of the chamber are temperature controlled with an impressively low gradient throughout. This allows the full internal volume to be used as an incubator if desired.
Another major advantage of the sleeveless system is that it uses eight times less gas when entering the workstation compared with a conventional porthole system. The airlock is flushed with nitrogen as an additional cost-saving.
To introduce samples or equipment, the built-in, 12 liter, rapid-cycle airlock has the capacity to introduce up to 40 Petri dishes into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox, ideal for quickly transferring all sizes of dishes and small items.
Whatever your application, we can tailor the Whitley A45 Workstation to your requirements. For example, if you want to be able to use electrical equipment inside the chamber, you could include the option of a built-in, interior electrical socket. If you require the ability to thoroughly sanitize your workstation between experiments or need to introduce large items of equipment, you may want to specify the removable front option.
From a relatively small footprint we have been able to maximize incubation capacity to create the perfect environment, whether for a few plates or hundreds of plates.
Options:Features:
No gloves, no sleeves - complete bare-handed working
Automated humidity control with no user maintenance
Rapid, built-in airlock with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket, 2 Amp max
Accommodates over 750 plates with ample work space, three porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Available removable front that can be removed and replaced in 30 seconds without the use of tools. This allows for thorough cleaning or installation of larger equipment
The Whitley A45 is available with custom port options. Two of the ports can be either rapid entry or conventional sleeved ports by choosing the removable front option.
Capacity (Liters) | 439 |
Capacity (Petri Dishes) | 600 - 900 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 12 liters |
Refrigeration | Not available |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1660 x 720 x 710 |
Weight (lbs/kg) | 286 / 130 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Porthole System | Manual or Instant Access Ports |
The A35 is the first workstation to be offered with our new glove/sleeveless system. Sample manipulation within a secure anaerobic environment is now as easy as working aerobically on the laboratory bench. The working and storage areas of the chamber are temperature controlled with an impressively low gradient throughout. This allows the full internal volume to be used as an incubator if desired.
Another major advantage of the sleeveless system is that it uses eight times less gas when entering the workstation compared with a conventional porthole system. The airlock is flushed with nitrogen as an additional cost-saving.
To introduce samples or equipment, the built-in, 12 liter, rapid-cycle airlock has the capacity to introduce up to 40 Petri dishes into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox, ideal for quickly transferring all sizes of dishes and small items.
Whatever your application, we can tailor the Whitley A35 Workstation to your requirements. For example, if you want to be able to use electrical equipment inside the chamber, you could include the option of a built-in, interior electrical socket. If you require the ability to thoroughly sanitize your workstation between experiments or need to introduce large items of equipment, you may want to specify the removable front option.
From a relatively small footprint we have been able to maximize incubation capacity to create the perfect environment, whether for a few plates or hundreds of plates.
Options:Features:
No gloves, no sleeves - complete bare-handed working
Automated humidity control with no user maintenance
Rapid, built-in airlock with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket, 2 Amp max
Accommodates up to 600 plates with ample work space, three porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Available removable front that can be removed and replaced in 30 seconds without the use of tools. This allows for thorough cleaning or installation of larger equipment
The Whitley A35 is available with custom port options. The two ports can be either rapid entry or conventional sleeved ports by choosing the removable front option.
Capacity (Liters) | 300 |
Capacity (Petri Dishes) | 400 - 600 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 12 liters |
Refrigeration | Not available |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1255 x 720 x 710 |
Weight (lbs/kg) | 220 / 100 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Porthole System | Manual or Instant Access Ports |
Microbiology International can now offer the unique Whitley Internal HEPA Filtration System to provide a high degree of product/sample protection on Whitley Anaerobic Workstations. HEPA fitted workstations are ideal for use as part of a pharmaceutical manufacturing process, for the cultivation of slow-growing anaerobes, or for applications requiring complex manipulations under anaerobic conditions (ie biochemical assays).
Using innovative circulation technology, all the atmosphere in the chamber passes through the filter every four seconds, quickly creating and maintaining a particle-free environment (tested down to 0.3μm – exceeding ISO 14644 Class 3, as referenced in the Cell Tissue Culture Directive, or Class 1 of US Federal Standard 209E). Unlike some other systems, Microbiology International integrates the filter within the workstation.
To introduce samples or equipment, the built-in, 12 liter, rapid-cycle airlock has the capacity to introduce up to 40 Petri dishes into the workstation in 60 seconds. There is also the option to specify the 15cm letterbox, ideal for quickly transferring all sizes of dishes and small items.
Whatever your application, we can tailor the Whitley A35 Workstation to your requirements. For example, if you want to be able to use electrical equipment inside the chamber, you could include the option of a built-in, interior electrical socket. If you require the ability to thoroughly sanitize your workstation between experiments or need to introduce large items of equipment, you may want to specify the removable front option.
From a relatively small footprint we have been able to maximize incubation capacity to create the perfect environment, whether for a few plates or hundreds of plates.
The Whitley A35 Anaerobic Workstation is the latest innovation in workstation technology from Don Whitley Scientific. Complete with a built-in, rapid airlock and intuitive touch-screen control panel, this new workstation allows you to work completely glove and sleeve-free.
Options:Features:
Rather than use ‘off-the-shelf’ filters, the Whitley HEPA Filtration System uses filters designed specifically for the product in conjunction with one of the world’s leading filter manufacturers.
Fitted with patented oval ports, equipped with sleeves and cuffs, which provide greater freedom of movement and operator comfort.
Automated humidity control with no user maintenance
Rapid, built-in airlock with mechanical and electrical interlocks - no risk of compromising conditions inside the chamber
Touch-screen interface with password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket available, 2 Amp max
Customized trolley hardware available, makes moving the workstation easy and fast.
Accommodates up to 600 plates with ample work space, three porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Available removable front that can be removed and replaced in 30 seconds without the use of tools. This allows for thorough cleaning or installation of larger equipment
The Whitley A35 is available with custom port options. The two ports can be either rapid entry or conventional sleeved ports by choosing the removable front option.
Capacity (Liters) | 300 |
Capacity (Petri Dishes) | 400 - 600 |
Port/Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Size | 12 liters |
Refrigeration | Not available |
HEPA Filtration | Fitted as standard |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1255 x 720 x 710 |
Weight (lbs/kg) | 220 / 100 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Porthole System | Manual Sleeved Ports |
The Whitley Workstation A95 has a 1080 plate capacity and is constructed of rigid acrylic (6mm thick front panels, 10mm thick side panels). The panels are chloroform annealed, creating a uni-body construction capable of withstanding positive pressure well in excess of the 4 PSI maintained constantly by the system.
Patented use of “oval” shaped gloveless entry ports allow the introduction of samples/materials by acting as a transfer airlock. This process allows the user to place their materials in the chamber while placing their hands in the chamber, reducing overall gas consumption considerably by not having to run a secondary airlock cycle.
Patented use of Anotox (activated carbon impregnated with ferric hydroxide) for atmospheric conditioning. By using Anotox, the catalyst does not have to be removed and baked routinely. Anotox removes the Hydrogen Sulfide and volatile fatty acids (by-products of anaerobe metabolism) that poison the catalyst and can impede the growth of anaerobes.
The entire workstation is temperature controlled, allowing for temperatures between 4°C and 44°C. There is no need for extra incubators and loss of space efficiency. Humidity is controlled automatically by an electronically controlled water removal system. Water is pumped to a container containing a silver-impregnated bacteriostatic wick to evaporate the water externally. There are no containers to empty. The humidity setting is user programmable. The electronics and lighting are located in an external control housing. There is no need to compromise the workstation to change light bulbs or perform fuse replacement.
The 100 plate airlock is an option to either the Whitley Workstation A95. The airlock cycle is electronically controlled and requires only a press of a button to operate. Catalyst dedicated to the airlock is housed internally and does not need to be changed or replaced. The system uses a radio controlled footswitch to eliminate clumsy wiring. There is a manual override for use when necessary. There are audible alarms to notify the user of low gas pressure, gas leaks, or power failure. The system is capable of maintaining anaerobiosis in the event of power loss for up to 24 hours.
Options:Features:
Four manual, oval glove ports enable you to work gloved or bare handed. Each gloveport also acts as a mini-airlock so you can transfer up to 10 plates through each as you insert your arms.
Massive 1000 - 1400 Petri dish capacity with ample work space
Large 30 liter airlock with powered internal door provides effective sample and equipment transfer in the fastest possible time whilst ensuring the minimum amount of oxygen is introduced into the chamber.
Color, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status. Features password protected user levels
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket available, 2 Amp max
Customized trolley hardware available, makes moving the workstation easy and fast.
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Capacity (Liters) | 652 |
Capacity (Petri Dishes) | 1000 - 1400 |
Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Size | 30 liters |
Refrigeration | Not available |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Not Available |
Dimensions (w/d/h - mm) | 2415 x 840 x 760 |
Weight (lbs/kg) | 507 / 230 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Trolley | Option Recommended |
Porthole System | Manual Oval Ports |
The Whitley Workstation A85 has a 540 plate capacity and is constructed of rigid acrylic (6mm thick front panels, 10mm thick side panels). The panels are chloroform annealed, creating a uni-body construction capable of withstanding positive pressure well in excess of the 4 PSI maintained constantly by the system.
Patented use of “oval” shaped gloveless entry ports allow the introduction of samples/materials by acting as a transfer airlock. This process allows the user to place their materials in the chamber while placing their hands in the chamber, reducing overall gas consumption considerably by not having to run a secondary airlock cycle. Evacuation and gassing of sleeves as well as opening of inner doors are controlled via the wireless footswitch. The system uses a radio controlled footswitch to eliminate clumsy wiring. There is a manual override for use when necessary.
Patented use of Anotox (activated carbon impregnated with ferric hydroxide) for atmospheric conditioning. By using Anotox, the catalyst does not have to be removed and baked routinely. Anotox removes the Hydrogen Sulfide and volatile fatty acids (by-products of anaerobe metabolism) that poison the catalyst and can impede the growth of anaerobes.
The entire workstation is temperature controlled, allowing for temperatures between 4°C and 44°C. There is no need for extra incubators and loss of space efficiency. Humidity is controlled automatically by an electronically controlled water removal system. Water is pumped to a container containing a silver-impregnated bacteriostatic wick to evaporate the water externally. There are no containers to empty. The humidity setting is user programmable.
The electronics and lighting are located in an external control housing. There is no need to compromise the workstation to change light bulbs or perform fuse replacement.
The 100 plate airlock is an option to the Whitley Workstation A85. The airlock cycle is electronically controlled and requires only a press of a button to operate. Catalyst dedicated to the airlock is housed internally and does not need to be changed or replaced.
Options:Features:
Large 30 litre airlock with powered internal door provides effective sample and equipment transfer in the fastest possible time whilst ensuring the minimum amount of oxygen is introduced into the chamber.
Manual, oval glove ports enable you to work gloved or bare handed. Each gloveport also acts as a mini-airlock so you can transfer up to 10 plates through each as you insert your arms.
Color, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status. Features password protected user levels
Optional refrigeration unit available should you need to store samples prior to incubation.
Dual gas operation and automatic commissioning cycle
Constructed from 10mm thick annealed acrylic, most robust chambers available
Tangential fans create laminar flow in chamber, internal atmosphere is constantly being circulated over catalyst, Anotox, and heating mat for a consistent and strictly anaerobic environment
Double internal power socket available, 2 Amp max
Customized trolley hardware available, makes moving the workstation easy and fast.
Accommodates over 540 plates with ample work space, two porthole doors
Gas requirements: 1 x ANO2 = 10% H2, 10% CO2, 80% N2 -OR- 1 x ANO2 and Nitrogen
No requirement to bake catalyst, simply replace catalyst and Anotox annually
Capacity (Liters) | 122 |
Capacity (Petri Dishes) | 540 - 610 |
Port/Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Size | 30 liters |
Refrigeration | Option Available |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Not Available |
Dimensions (w/d/h - mm) | 1570 x 840 x 760 |
Weight (lbs/kg) | 330 / 150 |
Temperature Range (°C) | 10°C above ambient up to 45°C |
Trolley | Recommended |
The Whitley Workstation M95 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment. Available options include letterbox, data logging, humidity control , gas pressure monitor, spare cable gland, data logging, and custom-designed trolley.
Options:Features:
A rapid, 30 liter airlock that can transfer 90 plates in only 300 seconds
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 1080 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Petri Dishes) | 1080 - 1400 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 2415 x 7 60 x 840 |
Weight (lbs/kg) | 507 / 230 |
The Whitley Workstation M85 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment. Available options include letterbox, data logging, humidity control , gas pressure monitor, spare cable gland, data logging, and custom-designed trolley.
Options:Features:
A large 30 liter airlock that can transfer 90 plates at a time into the workstation
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 610 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Liters) | 295 |
Capacity (Petri Dishes) | 540 - 610 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1570 x 760 x 840 |
Weight (lbs/kg) | 330 / 150 |

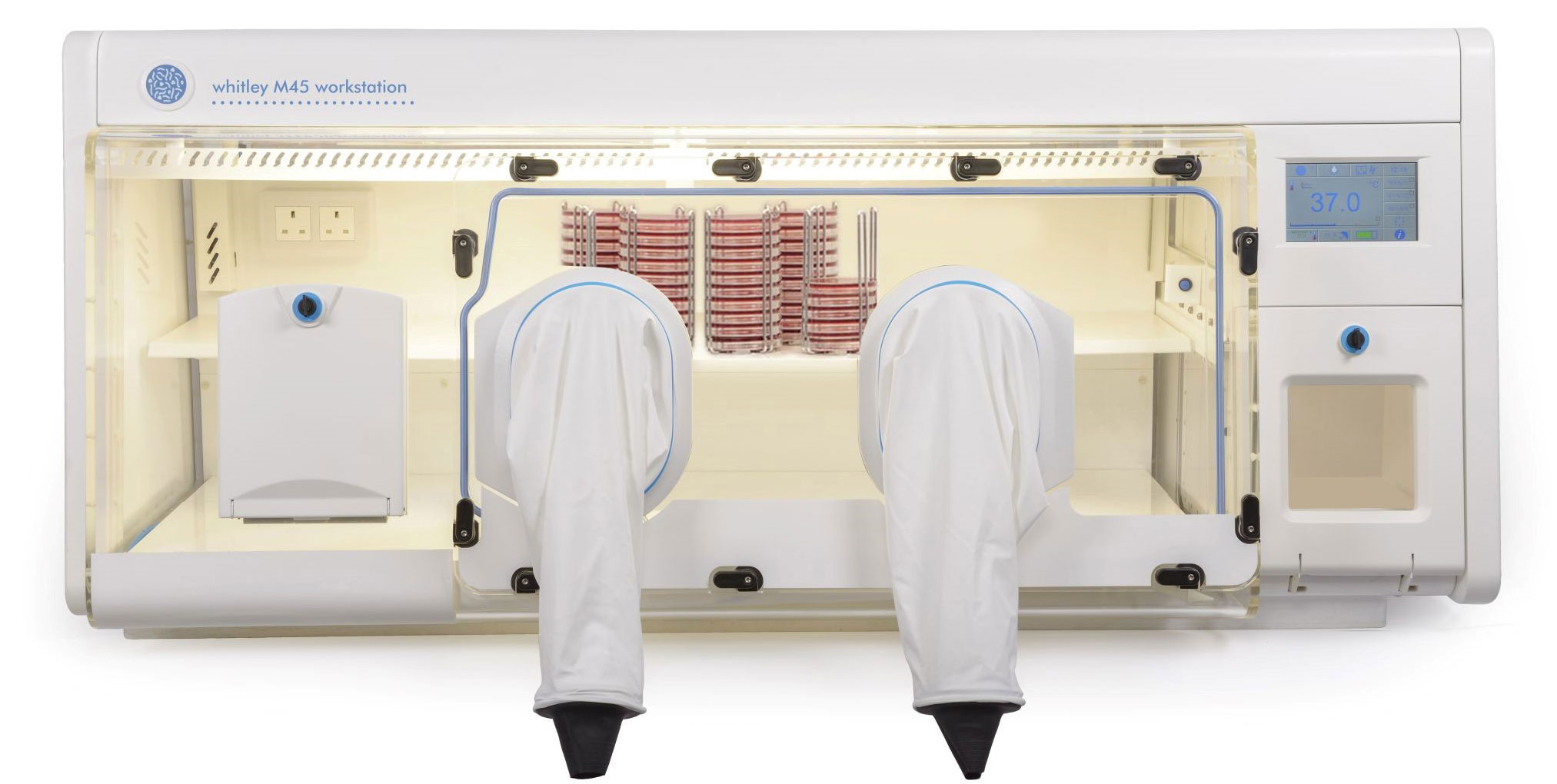

The Whitley Workstation M45 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment. Available options include 15 cm letterbox, data logging, HEPA filtration, humidity control, gas pressure monitor, spare cable gland, data logging, custom-designed trolley, and removable front.
For total flexibility, up to four gases - nitrogen, carbon dioxide, air and a 103 hydrogen/903 nitrogen mix - can be combined within safe and varying ratios to provide a specific atmosphere for your experiments. The work and storage areas of the chamber are temperature controlled with an impressively low gradient threshold of ± .6°. This allows the full internal volume to be used as an incubator if desired. The M45 has the option of a standard, fixed front or the removable front. The removable front allows convenient access in the chamber and is easily removed and replaced with no extra tools or loose pieces.
A range of optional accessories, such as HEPA filtration, removable front and automatic humidification, are available to customize this workstation to your specific requirements.Features:
A rapid, 12 liter airlock that can transfer 40 plates in only 60 seconds
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 600 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Liters) | 439 |
Capacity (Petri Dishes) | 600 - 900 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1660 x 810 x 710 |
Weight (lbs/kg) | 386 / 175 |
The Whitley Workstation M35 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment.
A range of optional accessories, such as HEPA filtration, removable front and automatic humidification, are available to customize this workstation to your specific requirements.Features:
A rapid, 12 liter airlock that can transfer 40 plates in only 60 seconds
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 600 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Liters) | 300 |
Capacity (Petri Dishes) | 400 - 600 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Size | 223mm Deep x 190mm High |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1255 x 720 x 710 |
Weight (lbs/kg) | 220 / 100 |
The Whitley Workstation M35 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment.
A range of optional accessories, such as HEPA filtration, removable front and automatic humidification, are available to customize this workstation to your specific requirements.Features:
A rapid, 12 liter airlock that can transfer 40 plates in only 60 seconds
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 600 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Liters) | 300 |
Capacity (Petri Dishes) | 400 - 600 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Size | 223mm Deep x 190mm High |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1255 x 720 x 710 |
Weight (lbs/kg) | 220 / 100 |
The Whitley Workstation M45 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment. Available options include 15 cm letterbox, data logging, HEPA filtration, humidity control, gas pressure monitor, spare cable gland, data logging, custom-designed trolley, and removable front.
For total flexibility, up to four gases - nitrogen, carbon dioxide, air and a 103 hydrogen/903 nitrogen mix - can be combined within safe and varying ratios to provide a specific atmosphere for your experiments. The work and storage areas of the chamber are temperature controlled with an impressively low gradient threshold of ± .6°. This allows the full internal volume to be used as an incubator if desired. The M45 has the option of a standard, fixed front or the removable front. The removable front allows convenient access in the chamber and is easily removed and replaced with no extra tools or loose pieces.
A range of optional accessories, such as HEPA filtration, removable front and automatic humidification, are available to customize this workstation to your specific requirements.Features:
A rapid, 12 liter airlock that can transfer 40 plates in only 60 seconds
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 600 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Liters) | 439 |
Capacity (Petri Dishes) | 600 - 900 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Capacity | 40 x 90mm Petri dishes |
Airlock Cycle Time | 60 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1660 x 810 x 710 |
Weight (lbs/kg) | 386 / 175 |
The Whitley Workstation M85 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment. Available options include letterbox, data logging, humidity control , gas pressure monitor, spare cable gland, data logging, and custom-designed trolley.
Options:Features:
A large 30 liter airlock that can transfer 90 plates at a time into the workstation
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 610 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Liters) | 295 |
Capacity (Petri Dishes) | 540 - 610 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 1570 x 760 x 840 |
Weight (lbs/kg) | 330 / 150 |
The Whitley Workstation M95 is a microaerophilic workstation ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. This is a 4-gas system with built-in gas sensing technology that allows you to program precise gas concentrations and is perfect for manipulating samples in a sustainable microaerophilic environment. Available options include letterbox, data logging, humidity control , gas pressure monitor, spare cable gland, data logging, and custom-designed trolley.
Options:Features:
A rapid, 30 liter airlock that can transfer 90 plates in only 300 seconds
For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.
This unit can accommodate up to 1080 x 90mm Petri dishes
Intuitive color touch screen interface with PIN-code protected user access levels
Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
Capacity (Petri Dishes) | 1080 - 1400 |
Gas Supplies | H2&N2 / CO2 / N2 / Air |
Airlock Capacity | 90 x 90mm Petri dishes |
Airlock Cycle Time | 300 seconds |
Automatic Dehumidifier | Fitted as standard |
Removable Front | Option Available |
Dimensions (w/d/h - mm) | 2415 x 7 60 x 840 |
Weight (lbs/kg) | 507 / 230 |
